Key Takeaways
Choosing the right air conditioner size for your home depends on room dimensions, insulation, ceiling height, and heat sources, not just a quick guess.
- Air conditioner size refers to cooling capacity measured in BTUs or kilowatts, not physical dimensions. Multiply your room length by its width in square metres to get a reliable starting point.
- An undersized unit runs constantly and drives up energy bills, while an oversized unit cools too fast and leaves rooms feeling damp. Getting the right fit avoids both problems.
- South facing rooms, conservatories, and loft spaces in Guildford absorb significantly more heat and require higher BTU ratings than a standard same size room would suggest.
- Open plan living spaces with ovens, TVs, or gaming computers need extra BTUs per heat source factored in. Zoned cooling with separate units may suit irregular or large layouts better.
- A qualified local installer can assess variables no online tool can detect and ensure safe fitting that protects your warranty and prevents water damage from poor drainage routing.
Choosing the right cooling capacity is one of the most common points of confusion for homeowners in Guildford and across Surrey, especially as warmer summers make air conditioning far more of a practical necessity. Get the size wrong and you will either be left sweating in an undercooled room or spending far more on energy bills than necessary. This air conditioner size guide will help you make a confident, informed decision before you spend a penny.
Whether you are cooling a single bedroom, a busy open-plan kitchen and lounge, or thinking about a whole-home solution, the process starts with understanding what “size” actually means. Air conditioner size refers to cooling capacity, not physical dimensions. It is measured in BTUs (British Thermal Units) or kilowatts. Once you understand that, everything else falls into place.
Why Getting the Right Air Conditioner Size Matters
The consequences of choosing the wrong size are more significant than most people realise.
An undersized unit runs almost constantly, struggles to cool the room, and drives up your electricity bills. An oversized unit cools too quickly, switching off before it can remove humidity and leaving the space feeling damp and clammy even when the thermostat reads correctly.
As air conditioning specialist Chris Barnes puts it: “Bigger isn’t always better, and smaller isn’t always more economical. Aim for the sweet spot.” That sweet spot is found by working through a structured sizing process, not by guessing or buying the most powerful unit you can afford.
How to Calculate the Right Air Conditioner Size
The right size depends on the floor area of your room, your ceiling height, insulation quality, window type, and heat sources. As a quick starting point:
- Up to 18 sq m (small bedroom or study): 7,000 BTUs
- Around 24 sq m (medium room or master bedroom): 10,000 BTUs
- Around 36 sq m (larger room or open office): 15,000 BTUs
- 40 sq m and above (open-plan living spaces): 18,000 BTUs or more
These figures assume standard insulation, double glazing, and a ceiling height of around 2.4 metres. If your room differs significantly, treat these as a starting point and adjust accordingly.
Follow these steps to work out the cooling capacity you need:
- Measure your floor area — multiply room length by width to get square metres.
- Use the BTU reference table below as your baseline.
- Adjust for ceiling height — ceilings above 3 metres increase your BTU requirement.
- Account for insulation and glazing — poorly insulated rooms or single-pane windows need around 10% more capacity.
- Add for heat sources — ovens, TVs, gaming PCs, and similar appliances each add 400 to 600 BTUs to the room’s heat load.
- Consider room orientation — south-facing rooms in Guildford receive significant direct sunlight during summer, increasing heat gain considerably.
| Floor Area | Typical Room Type | Recommended BTUs | Approximate kW |
|---|---|---|---|
| Up to 18 sq m | Small bedroom or study | 7,000 BTUs | ~2.1 kW |
| Around 24 sq m | Medium room or master bedroom | 10,000 BTUs | ~2.9 kW |
| Around 36 sq m | Larger room or open office | 15,000 BTUs | ~4.4 kW |
| 40 sq m and above | Open-plan living spaces | 18,000 BTUs or more | ~5.3 kW+ |
When shopping in the UK, you will encounter both BTUs and kilowatts (kW). One kilowatt equals approximately 3,412 BTUs, so a 3.5 kW unit delivers roughly 12,000 BTUs of cooling capacity. Most UK product listings display both figures, making it straightforward to compare.
What Size AC Unit Do I Need for a Bedroom?
Bedrooms have slightly different requirements compared to daytime living spaces. At night, rooms retain heat absorbed throughout the day, particularly south-facing rooms or those directly under the roof where solar gain tends to be higher.
However, more power is not always the right answer in a bedroom. Noise levels matter enormously in a sleeping environment. A well-matched, quieter unit running at a steady pace will usually create a more comfortable night’s sleep than an oversized model cycling on and off. In a bedroom, the goal is comfort and consistency, not raw power.
What Size Air Conditioner for an Open-Plan Space?
Open-plan kitchens, dining areas, and living rooms add complexity to the sizing equation. These spaces typically contain multiple heat sources such as ovens, televisions, and computers, all of which contribute to the overall heat load. Each significant heat-producing appliance requires an additional 400 to 600 BTUs to be factored into your calculation. In a fully equipped kitchen-living space, those additions can push your requirement up considerably.
A single well-positioned wall unit can handle many open-plan rooms, but layout matters. Rooms with unusual shapes, multiple adjoining areas, or partial walls between sections may not cool evenly from one unit. In those cases, zoned cooling using separate units for distinct areas is worth considering.
For multi-room or whole-house cooling, always calculate the BTU requirement for each room individually rather than applying a single whole-home figure.

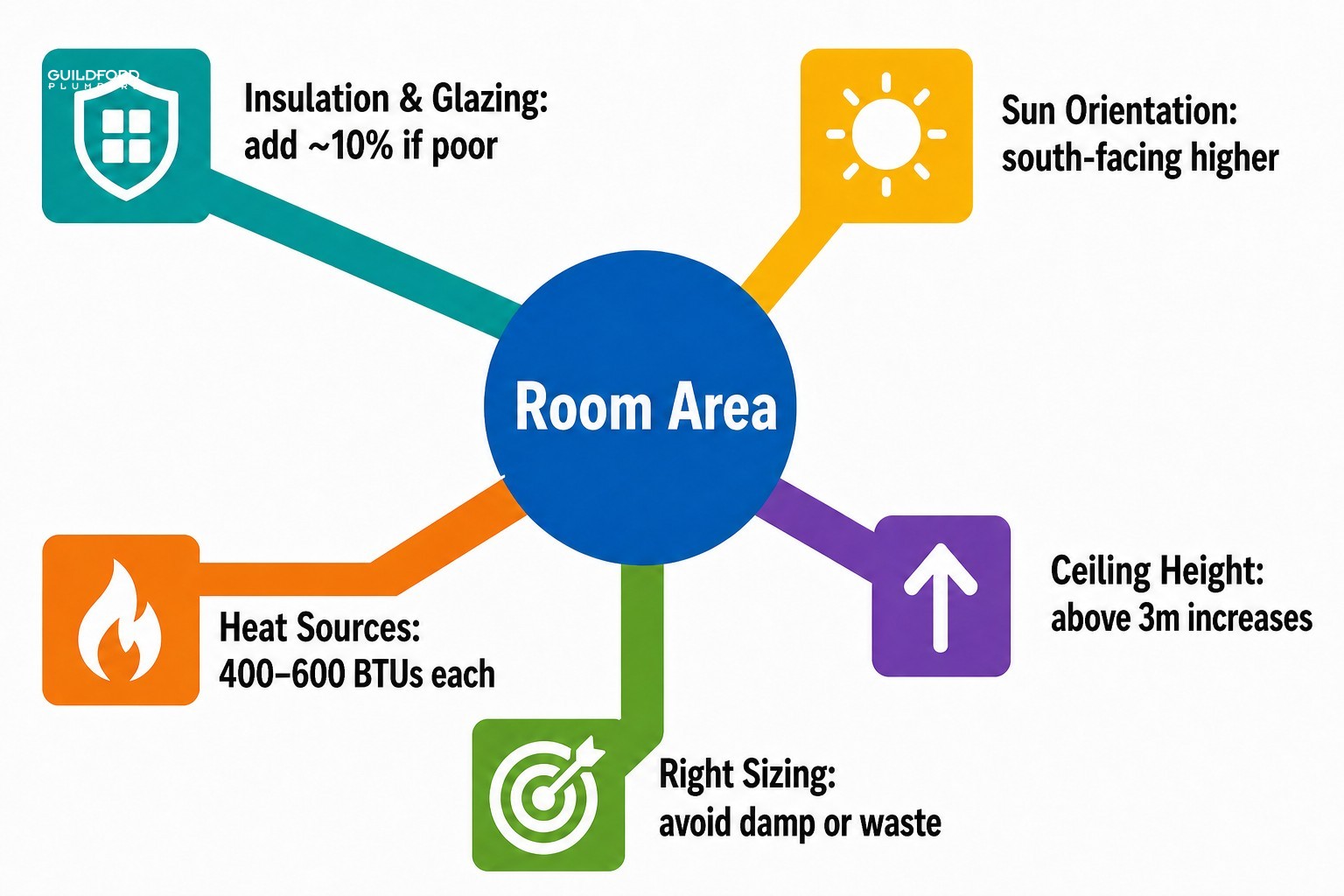

Key Factors That Affect AC Size for Guildford Homes
Floor area alone does not tell the full story. The following variables have a direct impact on the cooling capacity your room actually requires:
Insulation quality — a poorly insulated room needs more capacity, while a well-insulated modern home may need slightly less than the standard table suggests.
Window glazing — single-pane windows lose cool air significantly faster than double glazing. Add around 10% to your BTU estimate for older glazing.
Room orientation — south-facing rooms in Guildford and the surrounding Surrey area receive direct sunlight for much of the summer day, dramatically increasing heat load.
Loft rooms and conservatories — these typically require significantly higher BTU ratings than a comparably sized standard room due to greater heat gain.
Number of occupants — each person in the room adds to the thermal load and should be factored into your calculation.
This is why online BTU calculators can produce misleading results. Many rely on floor area alone, without accounting for these real-world variables that make a genuine difference to performance.
| Factor | Condition | Impact on BTU Requirement |
|---|---|---|
| Insulation quality | Poor insulation | Higher — increase estimate |
| Insulation quality | Well-insulated modern home | Lower — may reduce estimate slightly |
| Window glazing | Single-pane windows | Add ~10% to baseline |
| Window glazing | Double glazing | No adjustment needed |
| Room orientation | South-facing | Higher — significant solar gain in summer |
| Room type | Loft room or conservatory | Significantly higher than standard room |
| Number of occupants | Multiple people regularly present | Higher — each person adds to thermal load |
| Heat-producing appliances | Oven, TV, gaming PC, etc. | Add 400 to 600 BTUs per appliance |
When to Call a Professional Before You Buy or Install
Using a sizing table or an air conditioner BTU calculator is a useful first step and will help you arrive at any conversation with a supplier or installer already informed. However, there are real limits to what a calculation alone can tell you.
Incorrect installation, regardless of how well-sized the unit is, can void the manufacturer’s warranty, create drainage problems, or cause water damage inside walls if the condensate system is not properly routed. These are not minor risks, and they are difficult to reverse once the unit is fitted.
A qualified local installer can assess your space in person, account for variables no online tool can detect, and ensure the unit is fitted safely and in compliance with current building regulations. At Guildford Plumbers, we have been working in homes across Guildford and the surrounding areas, including Godalming, Farnham, and Woking, for over 12 years. We understand the specific challenges of local housing stock, from Victorian terraces in the town centre with limited wall access to modern open-plan extensions in newer developments. We get the sizing and installation right the first time. If you are ready to move forward, or simply want a professional opinion before you commit, get in touch with our team today.
Frequently Asked Questions About Air Conditioner Sizing
How do I know what BTU rating I need for my room?
Start by measuring your room’s floor area in square metres, then use a BTU reference table as your baseline. Adjust upward for poor insulation, single-glazed windows, south-facing orientation, high ceilings, or heat sources such as ovens and computers. A professional assessment will give you the most accurate result.
Is it better to oversize or undersize an air conditioner?
Neither is ideal. An oversized unit cools too quickly without removing humidity, leaving rooms feeling damp. An undersized unit runs continuously without reaching the target temperature, increasing energy costs. The correct size runs efficiently, maintains comfort, and removes moisture from the air as intended.
What size air conditioner do I need for a 20 sq m room?
A room of around 20 square metres typically requires approximately 8,000 to 9,000 BTUs under standard conditions. If the room is south-facing, poorly insulated, or contains heat-generating appliances, increase that estimate by around 10 to 15% to ensure adequate cooling performance.
Do I need a different size air conditioner for a conservatory?
Yes. Conservatories experience much higher heat gain than standard rooms due to their glass construction. Even a small conservatory will likely require a significantly higher BTU rating than a comparably sized bedroom or living room. A site assessment by a qualified installer is strongly recommended before purchasing.
Can one air conditioning unit cool multiple rooms?
A single unit can cool an open-plan space effectively if it is well-positioned and correctly sized for the total area. For separate rooms with doors, individual units or a multi-zone system with separate indoor heads is a more reliable solution, as cool air cannot easily travel through closed partitions.
Does ceiling height affect what size air conditioner I need?
Yes. Standard BTU tables assume a ceiling height of around 2.4 metres. Rooms with ceilings above 3 metres contain a greater volume of air and require a higher BTU rating to achieve the same cooling effect. Always account for ceiling height when sizing a unit for older or period properties.
